Spin-On Filters

  • Flows to 60 GPM.
  • Pressures to 150 psi
  • Standard Can Threads
  • Die-Cast Aluminum Heads

These are industrSIMPLEX standard filters; the replacement elements will fit the heads of other major manufacturers (and vice versa). The smaller model FEF-30 cans will interchange with those of U.S. manufacturers, and the larger Model FEF-51 cans will interchange with those of U.S. and some European suppliers

image of a spin-on filter
spin-on filter diagram on how to order

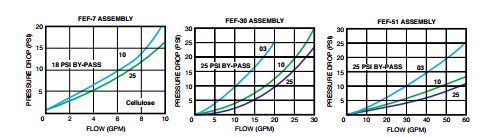

pressure drop charts

Typical pressure drop through clean filter assembly with oil viscosity of 150 SUS

FEF - 30 - 12 - 10 - RV25
STYLE - SIZE - PORT - ELEMENT - VALVE

STYLE SIZE PORTS ELEMENT BYPASS VALVE
FEF 7 04 (1/4 NPT)
06 (3/8 NPT)		 03 (3 micron)*
10 (10 micron)
25 (25 micron)		 RV-25
(25PSI)
size 30-51

RV-18
(18PSI)
size 7*
0
no RV
30 12 (3/4 NPT)
12S (1-1/16-12 SAE)
51 20 (1-1/4 NPT)
24 (1-1/2 NPT)
20S (1-5/8-12 SAE)

*Bypass for FEH-7 is located inside element.

Select the desired specifications from the ordering table and building an ordering code number as shown in this sample:

FEE - 30 - 10
STYLE - SIZE - ELEMENT

STYLE SIZE ELEMENT ELEMENT THREAD
FEE 7
30
51		 *03 (3 micron)
10 (10 micron)
25 (25 micron)
**100 (100 mesh)		 (7) 3/4-16 UNF SAE Straight Thread
(30) 1-12 UNF SAE Straight Thread
(51) 1-1/-16 UNF SAE Straight Thread

*Not available of FEE 7. **Available in FEE 30, 51 only.

Select the desired specifications from the ordering table and building an ordering code number as shown in this sample:

FEH - 30 - 12 - RV25
STYLE - SIZE - PORT - VALVE

STYLE SIZE PORTS BYPASS VALVE
FEH 7 04 (1/4 NPT)
06 (3/8 NPT)		 RV-25
(25PSI)
size 30-51

RV-18
(18PSI)
size 7*
0
no RV
30 12 (3/4 NPT)
16 (1-1/16-12 SAE)
51 20 (1/4 NPT)
24 (1-1/2 NPT)
20S (1-5/8-12 SAE)

*Bypass for FEH-7 is located inside element.
