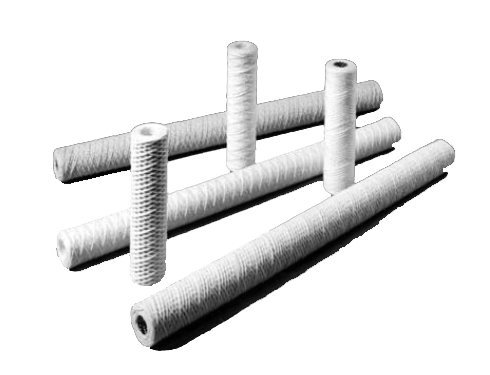

A2-Series Cartridge Filter Elements
Flow Ezy now offers true depthfiltration, continuous-wound cartridge elements in a wide range of materials, lengths, and micron retention ratings. A highly innovative single-core design is used, eliminating the "joints" common in other manufacturers' elements at 10-inch intervals. Available materials include cotton, acrylics, nylon, rayon, and polypropylene. Element lengths range from 9-3/4 inches to 40 inches, fitting most cartridge filter housings. Micron retention ratings are from 200 down to 0.5 micron. These elements offer true depth filtration, higher efficiency, lower pressure drop and greater solids holding capacity than standard elements, at a very competitive price.
If our standard cartridges do not meet your specific requirements, consult the factory for availability of cartridges that will.
Use the desired specifications from the ordering table and build an ordering code number, as shown in the example:
| CARTRIDGE TYPE |
- | MICRON RATING |
- | FILTER MEDIA | - | LENGTH INCHES |
- | CORE TYPE | - | OUTSIDE DIAMETER |
|---|---|---|---|---|---|---|---|---|---|---|
| DW - Precision Wound Filter Cartridge |
0.5 1 3 5 10 15 20 25 30 50 75 100 125 150 200 |
01-FDA Polypropylene 02-Fibrillated Polypropylene 03-Industrial Polypropylene 04-Ind. (Natural Cotton) 05-Bleached Cotton 06-FDA Bleached Cotton 09-Rayon 11-Nylon 13-Polyester 14-Acrylic 20-Anti-Microbial FDA Polypropylene |
3.75 4 4.75 5 6 8 9.75 10 12 12.5 19.5 20 24.5 29.25 30 36 39 40 50 72 |
1-Polypropylene 3-Tinned Steel 4-304SST 5-Polyester 6-316SST 7-Nylon |
A-2" B-2 1/4" C-2 3/8" D-2 1/2" E-2 5/8" F-2 3/4" G-3" H-4" I-4 1/4" J-4 1/2" (Big Blue) |
