CASS Series All Stainless Steel

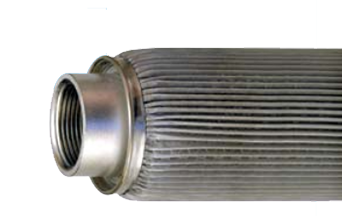

This all stainless steel crimped sump strainer comes in mesh sizes 30 to 200. Perforated inner support assures a strong, long-lasting strainer that can cleaned and used indefinitely.
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
CASS |
- | 30 |
- | 1-1/2 |
- | NIPPLE |
- | 200 |
- | RV-3 |
|---|---|---|---|---|---|---|---|---|---|---|
STYLE |
- | GPM |
- | NPT |
- | CONNECTION (spell out NIPPLE if wanted) |
- | MESH |
- | VALVE (omit if not wanted) |
STYLE |
GPM (Flow Capacity) |
NPT (Pipe Size) |
CONNECTION (Nut or Nipple) |
MESH (Screen size) |
VALVE (Optional) |
|---|---|---|---|---|---|
| CASS | 5 | 3/4, 1, 1-1/4 | no symbol (coupling) nipple (to get nipple you must specify it) |
30 60 100 200 |
RV-3 (3-psi bypass) RV-5 (5-psi bypass) |
| 10 | 3/4, 1, 1-1/4 | ||||
| 20 | 3/4, 1, 1-1/4 | ||||
| 30 | 1-1/2 | ||||
| 50 | 1-1/2 & 2 | ||||
| 75 | 2-1/2 | ||||
| 100 | 3 |
COUPLING STYLE
GPM RATING |
SCREEN AREA (Sq. Inches) |
NPT (Pipe Size) |
OVERALL DIMENSIONS Diameter | Length |
||
|---|---|---|---|---|---|
| 5 | 50 | 3/4, 1, 1-1/4 | 2-7/8 |
| | 3-1/8 |
| 10 | 110 | 3/4, 1, 1-1/4 | 2-7/8 |
| | 5-7/16 |
| 20 | 145 | 3/4, 1, 1-1/4 | 2-7/8 |
| | 7-3/16 |
| 30 | 260 | 1-1/2 | 3-3/4 |
| | 8-13/16 |
| 50 | 280 | 1-1/2 | 3-3/4 |
| | 9-5/8 |
| 50 | 280 | 2 | 3-3/4 |
| | 9-5/8 |
| 75 | 350 | 2-1/2 & 2 | 5 |
| | 12-7/16 |
| 100 | 450 | 3 | 5 |
| | 12-1/2 |
NIPPLE STYLE
GPM RATING |
SCREEN AREA (Sq. Inches) |
NPT (Pipe Size) |
OVERALL DIMENSIONS Diameter | Length |
||
|---|---|---|---|---|---|
| 5 | 50 | 3/4 | 2-7/8 |
| | 3-1/2 |
| 10 | 110 | 1 | 2-7/8 |
| | 5-3/4 |
| 20 | 145 | 1-1/4 | 2-7/8 |
| | 7-5/16 |
| 30 | 260 | 1-1/2 | 3-3/4 |
| | 9-5/8 |
| 50 | 280 | 1-1/2 | 3-3/4 |
| | 9-5/8 |
| 50 | 280 | 2 | 3-3/4 |
| | 9-5/8 |
| 75 | 350 | 2-1/2 | 5 |
| | 12-5/8 |
| 100 | 450 | 3 | 5 |
| | 12-5/8 |
NIPPLE STYLE (All-metal construction)
GPM RATING |
SCREEN AREA (Sq. Inches) |
NPT (Pipe Size) |
OVERALL DIMENSIONS Diameter | Length |
||
|---|---|---|---|---|---|
| 2 | 30 | 1/4, 1/2 | 1-1/4 |
| |
4-3/8 |
| 3 | 40 | 3/8, 3/4 | 2-1/16 |
| | 2-7/8 |
| 5 | 62 | 3/4 & 1 | 3-1/16 |
| | 3-11/16 |
| 10 | 125 | 1 | 3-1/16 |
| | 6 |
| 20 | 162 | 1-1/4 | 3-1/16 |
| | 7-9/16 |
| 30 | 310 | 1-1/2 | 4 |
| | 9-3/4 |
| 50 | 340 | 1-1/2 & 2 | 4 |
| | 9-3/4 |
| 75 | 400 | 2-1/2 & 3 | 5-1/16 |
| | 12-5/8 |
| 100 | 500 | 2 1/2, 3 | 5-1/16 |
| | 12-3/4 |
(Pressure drop through a clean element will not exceed 0.2 psi (0.4-in. Hg) at rated flow of 150 SSU viscosity fluid and 100 mesh.)
