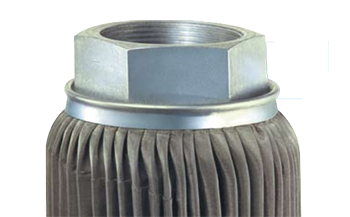

image of a strainer

Sump Strainers - Crimped-End Strainers

Magnets Available

These are truly all-metal sump strainers, as they do not have any epoxy in their construction. The stainless steel elements are secured through strong mechanical crimping. Good for almost any fluid, especially those that attack epoxy materials. Also for high-temperature applications.

Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:

C
 -
50
 -
2
 -
NIPPLE
 -
60
 -
RV-3
STYLE
 -
GPM
 -
NPT
 -
CONNECTION
(spell out NIPPLE
if wanted)
 -
MESH
 -
VALVE
(omit if
not wanted)
STYLE
GPM
(Flow
Capacity)
NPT
(Pipe
Size)
CONNECTION
(Nut or
Nipple)
MESH
(Screen
Size)
VALVE
(Optional)
C
(Crimped) 		5
10
20
30		 3/4
1
1-1/4
1-1/2		 no symbol
(nut)

To get NIPPLE
you must
specify it		 30

60

100

200		 RV-3
(3-psi bypass)

RV-5
(5-psi bypass)
50 1-1/2
2
75
100		 2-1/2
3

(Pressure drop through a clean element will not exceed 0.2 psi (0.4-in. Hg) at rated flow of 150 SSU viscosity fluid.)

image of nut style

NUT STYLE

GPM RATING
SCREEN AREA (Sq. Inches)
NPT (Pipe Size)
OVERALL DIMENSIONS
Diameter | Length
5 50 3/4 & 1
2-7/8
 |
3-1/8
10 110 1
2-7/8
 |
5-3/8
20 145 1-1/4
2-7/8
 |
7-1/8
30 260 1-1/2
3-7/8
 |
9-5/8
50 280 1-1/2 & 2
3-7/8
 |
9-5/8
75 350 2-1/2
5
 |
12-11/16
100 450 3
5
 |
12-11/16
image of nipple style

NIPPLE STYLE

GPM RATING
SCREEN AREA (Sq. Inches)
NPT (Pipe Size)
OVERALL DIMENSIONS
Diameter | Length
5 50 3/4
2-7/8
 |
3-1/2
10 110 1
2-7/8
 |
5-3/4
20 145 1-1/4
2-7/8
 |
7-5/16
30 260 1-1/2
3-3/4
 |
9-5/8
50 280 1-1/2
3-3/4
 |
9-5/8
75 350 2-1/2
5
 |
12-5/8
100 450 3
5
 |
12-5/8
