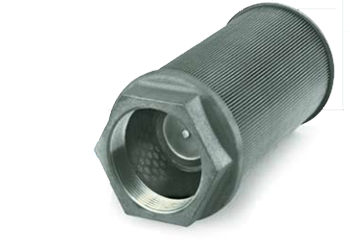

Double Element Sump Filters
REPLACES PRODUCTS FOR: Michigan Fluid Power (MFP), Fluid Power Products, Ambac Fluid Power, Fluid Power Systems
These high-quality sump filters meet the special requirements for use with hydraulic oils, coolants, lubricants, and fire-resistant fluids. They have a unique dual-element construction, general industrial, material handling, chemical, petroleum, machine tool & metalworking, and processing.
GPM |
PORT SIZE NPT |
ELEMENT AREA SQ. IN |
HEX A |
B |
C |
D |
|---|---|---|---|---|---|---|
| 10 | 1 | 130 | 1-5/8 | 4-1/16 | 3-1/8 | 3 |
| 15 | 1 | 170 | 1-5/8 | 5-1/16 | 3-1/8 | 3 |
| 20 | 1-1/4 | 230 | 2 | 6-1/16 | 5-1/8 | 3 |
| 30 | 1-1/2 | 370 | 2-1/4 | 6-1/16 | 5-1/8 | 4 |
| 50 | 2 | 450 | 2-3/4 | 7-1/16 | 6-1/8 | 4 |
| 75 | 2-1/2 | 540 | 3-9/16 | 7-1/16 | 6-1/4 | 5 |
| 100 | 3 | 720 | 4 | 8-5/16 | 7-1/4 | 5 |
| 150 | 3 | 920 | 4 | 10-5/16 | 9-1/4 | 5 |
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
SR |
- | 75 |
- | 2-1/2 |
- | 100 |
- | RV-3 |
|---|---|---|---|---|---|---|---|---|
STYLE |
- | GPM |
- | NPT |
- | MESH |
- | VALVE (omit if not wanted) |
| STYLE | GPM (Flow Capacity) |
NPT (Pipe Size) |
MESH (Screen size) |
VALVE (Optional) |
|---|---|---|---|---|
|
SU without bypass SR with bypass |
10 15 20 30 50 75 100 150 |
1 1 1-1/4 1-1/2 2 2-1/2 3 3 |
60 100 |
RV-3 (3-psi bypass) |
(Pressure drop through a clean element will not exceed 0.2 psi (0.4-in. Hg) at rated flow of 150 SSU viscosity fluid and 100 mesh.)
Magnets Available, order separately
