MASS Series All Stainless Steel

All stainless steel sump strainers with continuous epoxy bonded end caps.

Magnets Available

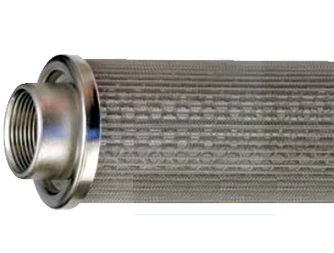

image of a mass stainer

Select the desired specifications from the ordering table and build an ordering code:

STYLE
GPM
(Flow
Capacity)
NPT
(Pipe
Size)
CONNECTION
(Nut or
Nipple)
MESH
(Screen
Size)
VALVE
(Optional)
MASS 2 3/8, 1/2

no symbol
(coupling)



nipple
(to get nipple you
must specify it)


30

60

100

200

RV-3
(3-psi bypass)



RV-5
(5-psi bypass)
2 3/8, 1/2
3 3/8, 1/2, 3/4
5 3/4, 1, 1-1/4
10 3/4, 1, 1-1/4
20 3/4, 1, 1-1/4
30 1-1/2
50 1-1/2, 2
75 2-1/2
100 3

(Pressure drop through a clean element will not exceed 0.2 psi (0.4-in. Hg) at rated flow of 150 SSU viscosity fluid and 100 mesh.)

image of nut style

COUPLING STYLE

GPM RATING
SCREEN AREA (Sq. Inches)
NPT (Pipe Size)
OVERALL DIMENSIONS
Diameter | Length
2 30 3/8, 1/2
1-3/4
 |
4-1/4
3 35 3/8, 1/2, 3/4
2-1/32
 |
2-11/16
5 50 3/4, 1, 1-1/4
3-1/16
 |
3-1/16
10 110 3/4, 1, 1-1/4
3-1/16
 |
5-9/16
20 145 3/4, 1, 1-1/4
3-1/16
 |
7-1/8
30 260 1-1/2
4-1/16
 |
9-5/8
50 280 1-1/2
4-1/16
 |
9-5/8
50 280 2
4-1/16
 |
9-5/8
75 350 2-1/2 & 2
5-1/16
 |
12-5/8
100 450 3
5-1/16
 |
12-5/8

NIPPLE STYLE

GPM RATING
SCREEN AREA (Sq. Inches)
NPT (Pipe Size)
OVERALL DIMENSIONS
Diameter | Length
2 30 3/8, 1/2
1-3/4
 |
4-1/2
3 40 3/8, 1/2, 3/4
2-1/32
 |
2-7/8
5 62 3/4, 1
3-1/16
 |
3-11/16
10 125 3/4, 1, 1-1/4
3-1/16
 |
6
20 162 1-1/4
3-1/16
 |
7-9/16
30 305 1-1/2
4-1/16
 |
9-3/16
50 330 1-1/2
4-1/16
 |
9-13/16
50 330 2
4-1/16
 |
9-13/16
75 390 2-1/2
5-1/16
 |
12-3/4
100 500 3
5-1/16
 |
12-3/4
image of nipple style

NIPPLE STYLE (All-metal construction)

GPM RATING
SCREEN AREA (Sq. Inches)
NPT (Pipe Size)
OVERALL DIMENSIONS
Diameter | Length
2 30 1/4, 1/2
1-1/4
|
4-3/8
3 40 3/8, 3/4
2-1/16
 |
2-7/8
5 62 3/4 & 1
3-1/16
 |
3-11/16
10 125 1
3-1/16
 |
6
20 162 1-1/4
3-1/16
 |
7-9/16
30 310 1-1/2
4
 |
9-3/4
50 340 1-1/2 & 2
4
 |
9-3/4
75 400 2-1/2 & 3
5-1/16
 |
12-5/8
100 500 2 1/2, 3
5-1/16
 |
12-3/4
