U.S. MESH INCHES MICRONS
4 .187 4760
6 .132 3360
8 .0937 2380
10 .0787 2000
20 .0331 841
30 .0232 595
40 .165 420
60/30* .0098 250
100/30* .0059 149
200/30* .0029 74

*The "30" stands for the mesh size of the support screen.

Pipe-Mounted Suction Screens

Suction screens can be used for straining oil, chemical liquids, and water. They will not rust. They're made of tough glass-filled nylon resins with stainless steel wire cloth elements. With male or female NPT connectors, to thread into or onto pipe. There are ten wire mesh sizes to choose from. The finer 60-, 100-, and 200-mesh size screens are backed up with a heavier 30-mesh inner support.

examples of pipe mounted suction screens

NUT STYLE STRAINERS

PART NO. NPT (Pipe Size) SCREEN AREA
(Sq. In.)		 DIMENSIONS

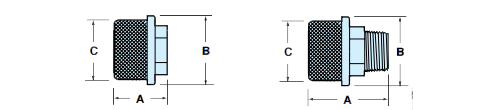

A B C HEX
F-01
F-02
F-03
F-04		 1/8
1/4
3/8
1/2		 3.1 1-1/2 1-5/8 1 1-3/8
F-1
F-2
F-3
F-4
F-5		 1/8
1/4
3/8
1/2
3/4		 6.5 1-1/2 2-1/4 1-1/2 1-3/8
F-6
F-8
F-10		 3/4
1
1-1/4		 14.75 2-1/8 3-3/16 2-1/2 1-3/8
1-5/8
2
F-12
F-16		 1-1/2
2		 27.5 2-5/8 4-3/16 3-1/2 2-1/4
2-3/4


NIPPLE STYLE STRAINERS

PART NO. NPT (Pipe Size) SCREEN AREA
(Sq. In.)		 DIMENSIONS
A B C
M3
M4
M6		 3/8
1/2
3/4		 6.5 2-1/2 2-1/4 1-1/2
M8
M16
M20		 1
2
2-1/2		 11.2
27.5		 2-1/2
4-1/4
2-7/8*		 3
4-3/16		 2-1/8
3-1/2
M24 3 46 4-5/8 5-3/16 4-1/2

Choose a part number from the nut or nipple table and add the mesh size desired from the mesh size table located above.

Example:
A 2-in. nut-style strainer is part number F-16, and odering it with a 20-mesh wire screen would add "20" to the part number, making itF-16-20.

example of how to order a pipe-mounted suction screen
example of how to order a pipe-mounted suction screen

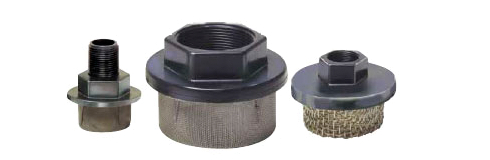

image of suctions screens
