Units for Pressurized Tanks

These units provide air flow at 25 scfm to displace liquid at the rate of 190 gpm. They have a pressure rating of 5 psi (10 psi optional). It is available in either the standard mount or with the optional 'High-neck' mount, which keeps the bottom of the air filter three inches above the tank top. The four-inch deep strainer basket is made of nylon, and has openings equivalent to 30-mesh. The grip-type cap is made of plated steel, and has a 10 or 40-micron air filter.

A safety chain is supplied on the standard model; if desired on the high neck model it must be specified.

To help prevent tampering the cap and mount can have welded lugs to allow use of a padlock. Specify 'padlock adapted'.

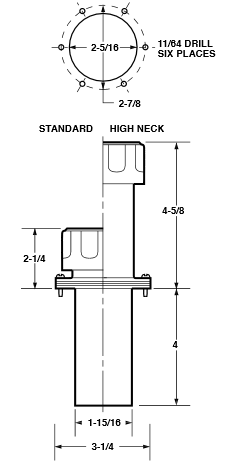

image of pressurized tank

Standard model
MODEL NO. ABGP-1010-4
(40-micron)

Weatherproof model
MODEL NO. ABGP-1010-4-WP*
(10-micron)

High-neck model
MODEL NO. ABGP-1000-4-HN
(40-micron)
MODEL NO. ABGP-1010-4-HN*
(10-micron)

Available with lockable cap, add '-LL' at end of model no.

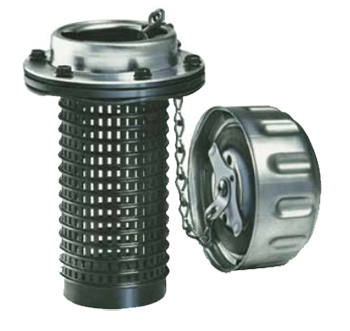

image of a grip type cap

Grip type cap
