Removable Basket Units
The strainer baskets in these units pull out creating an easy point of entry into a hydraulic or lube oil reservoir for a suction hose. Allows easy removal of fluid. They are available with the same choice in accessories as the standard top-mounting units have. It's also easier to clean the basket of any dirt accumulation
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
| ABR | - | 1000 | - | 6 | - | HN | - | DS-6 | - | LL | - | BPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAP | - | ELEMENT | - | BASKET | - | NECK | - | DIP | - | Lockable | - | Powder Coated omit if not wanted |
(R = Removable)
| CAP Type |
ELEMENT Micron) |
BASKET (A) Depth (in.) |
NECK Height |
DIP STICK**** |
Lock Lugs |
BLACK POWDER COATED |
|---|---|---|---|---|---|---|
| ABR* (Std.) ABGR** (Grip Type) ABGPR |
1000 (40) 1010 (10) |
3 6 8 13 |
No Symbol (Std.) HN** (High neck) |
No Symbol (No Stick) DS-3** (3-in.) DS-6** (6-in.) DS-8** (8-in.) DS-13** (13-in.) |
LL | BPC (ABG style only) |

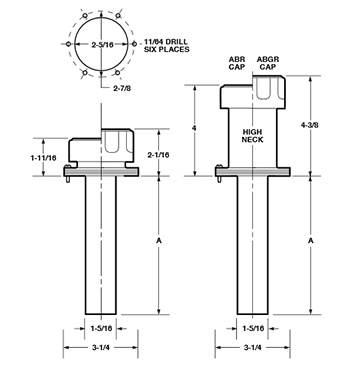

Removable basket unit

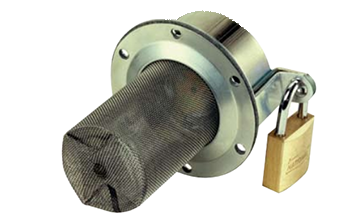

Lockable Cap
*Stainless steel available on ABR only. **No chain unless specifically ordered.
****Dip stick markings available (minimum order and extra charge.)
