Suction Strainers

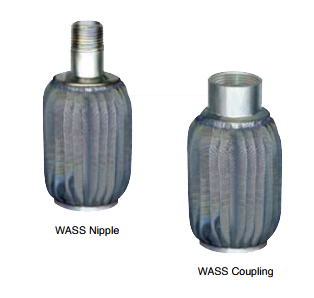

"WASS" style sump strainers are mini-type, welded, and all 304 stainless steel for virtually any fluid compatibility issues. The ends are secured through mechanical crimping. No epoxy is used in the manufacturing of these units. For low-flow applications.
These high-quality sump filters meet the special requirements for use with hydraulic oils, coolants, lubricants, and fire-resistant fluids. They have a unique dual-element construction, general industrial, material handling, chemical, petroleum, machine tool & metalworking, and processing.
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
WASS |
- | 3 |
- | 1/2 |
- | NIP |
- | 60 |
- | RV-3 |
|---|---|---|---|---|---|---|---|---|---|---|
STYLE |
- | GPM |
- | NPT |
- | CONNECTION (spell out NIP if wanted) |
- | MESH |
- | VALVE (omit if not wanted) |
| STYLE | GPM (Flow Capacity) |
NPT (Pipe Size) |
CONNECTION (Nut or Nipple) |
MESH (Screen Size) |
VALVE (Optional) |
|---|---|---|---|---|---|
| WASS | 3 | 3/8 1/2 3/4* |
no symbol (coupling NIP (nipple) |
30 60 100 200** |
no symbol (Omitted) RV-3 (3-spi) RV-5 (5-spi) |
* 3/4 coupling not available
** 50 X 200 mesh available
Magnets Available, order separately
