T-Filters®
SENSIBLE, HIGH-CAPACITY, HIGHLY‑VERSATILE FILTERS

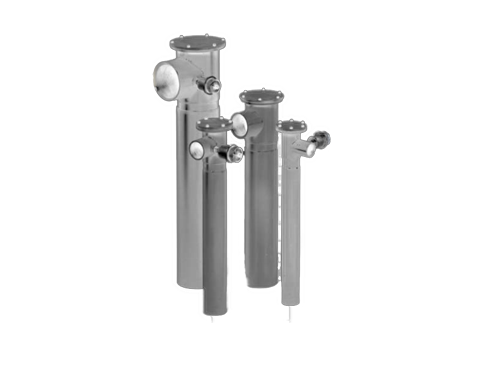

The T- Filter concept is to provide large-area (low pressure drop) filter elements, that are easily replaced, in low-cost housings made of welded steel tube. Elements can be cleanable wire mesh or throw-away fiber.
Install inside or outside the tank. Eliminate the usual pipe between tank and filter, and one pipe elbow.
Two element lengths available. Long elements in housings with unthreaded bottoms are usually specified for in-tank installations. The long elements also come in housings with threaded bottoms for piped installations.
For lower capacity or more compact installations, a series of short elements are available, in housings with threaded bottom ports only.
Two element designs. One for "flow-up" and one for "flow-down" filtering. Easy element servicing. Elements lift straight up out of the clean-out port, which also serves as a filling port.
FILTER ELEMENT RATINGS AND AREAS
RATING, um | SQUARE INCHES OF ELEMENT PER MODEL | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
SYMBOL | DESCRIPTION | Nominal | Absolute | TF-L12 | TF-L18 | TF-L45 | TF-L100 | TF-S9 | TF-S23 | TF-S50 |
TF-P12 | TF-P18 | TF-P45 | ||||||||
238 | Stainless steel wire, 60 mesh |
238 | - | 120 | 230 | 315 | 460 | 115 | 157 | 230 |
149 | Stainless steel wire, 100 mesh |
149 | - | 120 | 230 | 315 | 460 | 115 | 157 | 230 |
74 | Stainless steel wire, 200 mesh |
74 | - | 120 | 230 | 315 | 460 | 115 | 157 | 230 |
40A | Synthetic fiber (single layer) |
50 | 85 | N/A | 150 | 360 | 680 | 75 | 180 | 340 |
15A | Synthetic fiber (double layer) |
42 | 70 | N/A | 110 | 280 | 510 | 60 | 150 | 250 |
20C | Cellulose fiber | 23 | 65 | N/A | 223 | 580 | 1200 | 110 | 285 | 500 |
10C | Cellulose fiber | 13 | 30 | N/A | 223 | 580 | 1200 | 110 | 285 | 500 |
DIMENSIONS | |||||||||
---|---|---|---|---|---|---|---|---|---|
FILTER MODEL |
A LENGTH |
B DIA. |
C | D DIA. |
E NPT |
F | G | H | J |
L12 | 20-1/2 | 3-1/8 | 2-3/8 | 1-5/8 | 1 | 2-1/2 | 18-1/8 | 1-7/8 | 19 |
L18 | 24-1/2 | 3-5/8 | 2-1/2 | 2 | 1-1/4 | 2-3/4 | 22 | 2-3/8 | 20 |
L45 | 26-1/2 | 4-5/8 | 3 | 2-3/4 | 2 | 3-1/4 | 23-1/2 | 3-1/2 | 21 |
L100 | 30-1/2 | 5-3/4 | 3-5/8 | 4 | 3 | 4-1/4 | 26-15/16 | 4-1/2 | 22 |
P12 | 21 | 3-1/8 | 2-3/8 | 1-5/8 | 1 | 2-1/2 | 18-11/16 | 1-7/8 | 19 |
P18 | 25 | 3-5/8 | 2-1/2 | 2 | 1-1/4 | 2-3/4 | 22-9/16 | 2-3/8 | 20 |
P45 | 27-1/16 | 4-5/8 | 3 | 2-3/4 | 2 | 3-1/4 | 24-1/8 | 3-1/2 | 21 |
P100 | 31-3/4 | 5-3/4 | 3-5/8 | 4 | 3 | 4-1/4 | 27-13/16 | 4-1/2 | 22 |
S9 | 14-1/2 | 3-5/8 | 2-1/2 | 2 | 1-1/4 | 2-3/4 | 12-1/16 | 2-3/8 | 13 |
S23 | 15-1/4 | 4-5/8 | 3 | 2-3/4 | 2 | 3-1/4 | 12-1/4 | 3-1/2 | 13 |
S50 | 17-1/8 | 5-3/4 | 3-5/8 | 4 | 3 | 4-1/4 | 13-5/8 | 4-1/2 | 14-1/2 |
