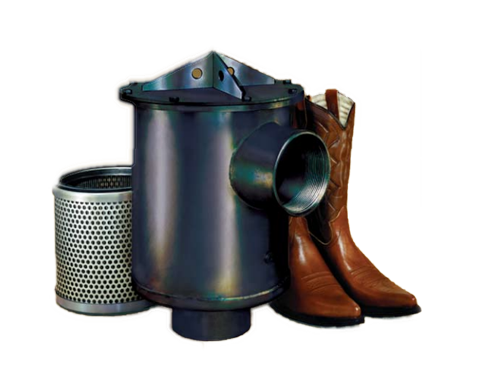

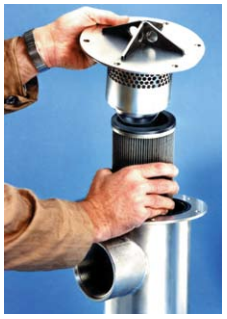

Texas Filters®
For effective low-cost, high volume filtration
Suction Line Filter Selection
Suction filters, the most important filter in the entire system, protects the the key system component, the pump. A single TEXAS Filter can clean hundreds of gallons of fluid per minute
Return Line Filter Selection
TEXAS Filters provide an ideal way to pre-condition fluid to higher levels of cleanliness before it returns to the reservoir. (Return line filter covers are made stronger for the higher pressures found in these applications.)
| ELEMENT DIMENSIONS | ||||
|---|---|---|---|---|
| MODEL | O.D. | I.D. | LENGTH | AREA |
| TXF-75 6347 (OBS) |
4-1/4 | 3-1/8 | 5-5/8 | 275 |
| TXF-100 6348 |
4-1/2 | 3-1/8 | 7-1/2 | 375 |
| TXF-150 6349 (OBS) |
5-7/8 | 4-7/8 | 8 | 500 |
| TXF-200 6350 |
5-7/8 | 4-7/8 | 10-3/4 | 650 |
| TXF-300 6351 (OBS) |
5-7/8 | 4-7/8 | 15-3/4 | 1000 |
| TXF-400 6352 |
8-1/8 | 7-1/8 | 15 | 1200 |
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | USAGE | PIPE SIZE | A | B | C | D | E | F | G | H | I |
| TXF-100 | SUCTION | 3 | 5.31 | 4.81 | 4.00 | 4.38 | 15.50 | 2.69 | 2.69 | 7.31 | 5.88 |
| RETURN | 1-1/2 | 4.71 | 3.81 | 2.20 | 5.38 | 14.25 | 1.44 | 1.69 | |||
| TXF-200 | SUCTION | 4 | 6.62 | 5.31 | 5.00 | 5.5 | 20.12 | 2.88 | 3.19 | 9.88 | 8.12 |
| RETURN | 2-1/2 | 6.79 | 4.44 | 3.25 | 6.38 | 19.75 | 2.50 | 2.31 | |||
| TXF-400 | SUCTION | 6 | 7.36 | 6.44 | 7.39 | 6.5 | 26.00 | 3.38 | 4.31 | 11.88 | 10.25 |
| RETURN | 4 | 7.83 | 5.31 | 5.00 | 7.62 | 25.20 | 2.88 | 3.19 | |||
