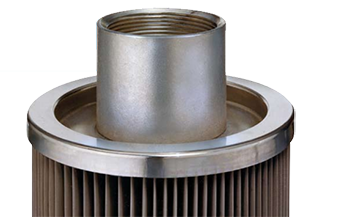

TexasTM Strainer
These are BIG suction strainers that screw into reservoir suction pipes as large as six inches in diameter, to handle flow rates as high as 600 gpm. Stainless wire screens as fine as 200 mesh and either male (nipple) or female (coupling) connections may be ordered. Each flow size is offered in more than one length/diameter ratio size to better fit your available space.
Standard Texas strainers are made with mild steel support tubes, end caps, and fittings. They're epoxy bonded for leak--proof service.
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
200 |
- | 2 |
- | N |
- | 5.9 |
- | 30 |
- | RV-3 |
- | ALSS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GPM |
- | NPT |
- | CONNECTION |
- | DIA. |
- | MESH |
- | VALVE |
- | MESH |
GPM (Flow Capacity) |
NPT (Pipe Size) |
CONNECTION (Nut or Nipple) |
DIA. (In.) |
MESH (Screen Size) |
VALVE (Optional) |
STYLE |
|---|---|---|---|---|---|---|
| 200 | 2 3 4 6 |
no symbol (coupling) N (nipple) |
5.9 8.1 10.2 |
30 60 100 200 |
RV-3 (3-psi bypass) RV-5 (5-psi bypass) |
ALSS (all stainless steel- omit if not wanted) |
| 300 | 3 4 6 |
|||||
| 400 600 |
4 6 |
DIMENSION TABLE
| FLOW RATINGS (based on 150 SUS oil) |
200 GPM | 300 GPM | 400 GPM | 600 GPM | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ELEMENT AREA (sq. in. of wire cloth) |
1070 | 965 | 860 | 1340 | 1370 | 1175 | 1905 | 1740 | 1665 | 2430 | 2370 |
| OUTSIDE DIAMETERS (in.) |
5.9 | 8.1 | 10.2 | 5.9 | 8.1 | 10.2 | 5.9 | 8.1 | 10.2 | 8.1 | 10.2 |
| OVERALL LENGTHS (in.) With 2" COUPLING With 2" NIPPLE |
13-5/8 14-3/4 |
10-3/16 11-5/16 |
8 9-1/8 |
Call Factory |
|||||||
| 3" COUPLING 3" NIPPLE |
14-3/4 15-1/8 |
11-5/16 11-11/16 |
9-1/8 9-1/2 |
18-1/16 18-7/16 |
14-3/4 15-1/8 |
11-5/16 11-11/16 |
|||||
| 4" COUPLING 4" NIPPLE |
15-9/16 15-13/16 |
11-9/16 11-13/16 |
9-3/8 9-5/8 |
18-7/8 19-1/8 |
15 15-1/4 |
11-9/16 11-13/16 |
24-3/4 25 |
18-3/16 18-7/16 |
14-15/16 15-3/16 |
24-3/16 24-7/16 |
19-15/16 20-3/16 |
| 6" COUPLING 6" NIPPLE |
12-5/8 12-3/4 |
9-7/8 10 |
16 16-1/8 |
12-1/16 12-3/16 |
19-1/4 18-3/8 |
15-7/16 15-9/16 |
25-1/4 25-3/8 |
20-7/16 20-9/16 |
|||
ALL-STAINLESS CONSTRUCTION
Texas strainers are available constructed entirely of stainless steel, in the same wide variety of sizes and element mesh sizes as the standard units.
*Bypass valve will not handle 100% of rated flow.
