Steel Top-Mounting Units

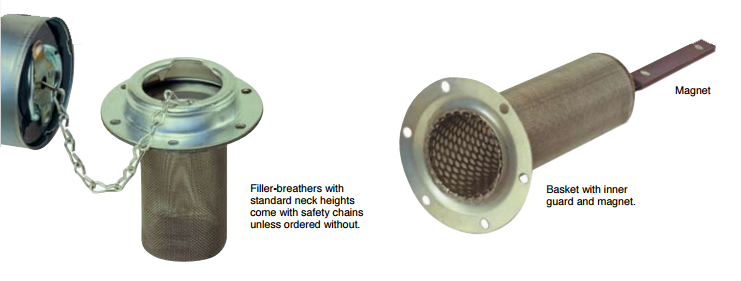

If funnels are used for filling, it is recommended that the screen basket be ordered at least 6-inches deep, to prevent accidental puncturing. Perforated metal inner guards may be ordered also, to prevent damage to the screen.

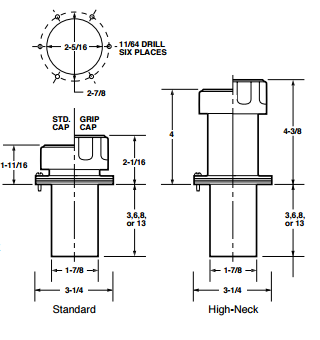

To help prevent tank-top dirt from plugging up the air filter you can order a 'high-neck&apos' model. It puts the air filter 3 inches above the tank top. A 'grip' cap is another option: it is a larger, nickel-plated filler cup with curved indentations to provide a better gripping surface. Ideal for outdoor or oily environments.
Select the desired specifications from the ordering table and build an ordering code number, as shown in this sample:
| AB | - | 1000 | - | 6 | - | HN | - | G | - | DS-6 | - | M8 | - | LL | - | BPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAP | - | ELEMENT | - | BASKET | - | NECK | - | GUARD | - | DIP | - | Magnet Lockable (omit if not wanted) |
||||
| CAP Type |
ELEMENT Micron) |
BASKET Depth (in.) |
NECK Height |
INNER GUARD |
DIP STICK**** |
MAGNET and POST |
Lock Lugs |
BLACK POWDER COATED |
|---|---|---|---|---|---|---|---|---|
| AB* (Std.) ABG** (Grip Type) ABNV** (Non-vented) |
1000 (40) 1010 (10) |
3 6 8 13 |
No Symbol (Std.) HN*** (High Neck) |
No Symbol (No Guard) G (Guard) |
No Symbol (No Stick) DS-3*** (3-in.) DS-6*** (6-in.) DS-8*** (8-in.) DS-13*** (13-in.) |
No Symbol (No Magnet) M3 (3-in. post) M6 (6-in. post) M8 (8-in. post) |
LL | BPC ABG ABGP (only) |
*Stainless steel available on AB only. **ABG comes nickle plated or black powder coated.
***No chain unless specifically ordered. ****Dip stick markings available (minimum order and extra charge.)
